Info: Various Filters / Cartridges and Heads
3M Aqua-Pure systems are considered by professionals to be some of the best on the market. For maximum operating performance, you should always replace your filter cartridges in accordance with the manufacturer's specifications (or sooner, depending on water quality).
Info: Various Filters / Cartridges and Heads
3M Aqua-Pure systems are considered by professionals to be some of the best on the market. For maximum operating performance, you should always replace your filter cartridges in accordance with the manufacturer's specifications (or sooner, depending on water quality).
Product Notes:

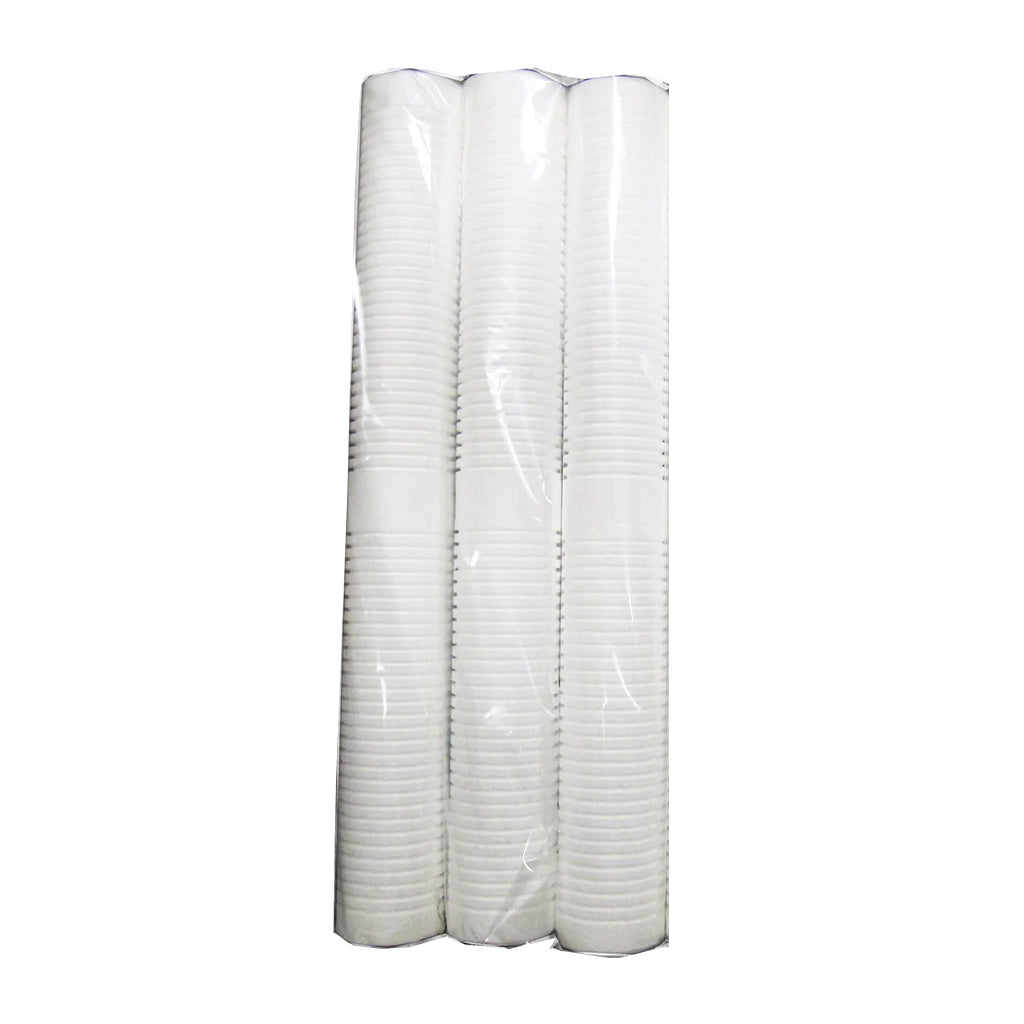

1 Micron Micro-Klean RT PreFilter (RT19Y16G20NN)
This 19-1/2 inch long 2-5/16" diameter depth filter cartridge (Double Open End, No Gasket - with a flat top and bottom) is made entirely of polypropylene to provide consistent and efficient particle reduction, increased surface life, and a low initial drop in pressure. This material complies with food and beverage regulations for use in potable water applications, and the filter is made without adhesives, binders, surfactants or lubricants, and is grooved to provide more surface area to increase its life and how much it captures. The rigid, sturdy construction of these 3M cartridges enables them to withstand and continue to function properly in the presence of water pressure variations, and because their material was extruded continuously during their manufacture, there are no bond joints to break. Of course, these filters fit into certain Prefilter Housings produced by 3M, such as the Model CFS12T (available separately) that can be used to extend the life of the main Aqua-Pure AP903 Whole House System filters, but would also work in other filter housings, including from other brands, accommodating those dimensions. They are pictured and are available on discount in a group of six on our Replacement Parts for 3M Aqua-AP903 Whole House Water System page.
C-CS-FF Replacement Cartridge for AP Easy CS-FF (016145607592) for use with the AP Easy CS-FF under sink water filtration system
Drinking Water Cartridge - Reduces: Chlorine Taste & Odor, Sediment
• Sanitary Quick Change (SQC) cartridge design
• Pressure: 25-125 psi (172-862 kPa).
• Temperature: 40-100 F (4.4-37.8 C).
• Capacity: 2,000 gallons (7,571 litres).
• Weight: 1.6 lbs (0.73 kg).
• Nominal Micron Rating: 5
• Flow Rate: 1.5 gpm (5.7 lpm).
• Dimensions: 10-7/16" H x 3-3/16"D
Replacement Cartridge for DWS 1000 (016145080906)
Easy cartridge change-out for use with AP-DWS1000/AP-DWS1000LF.
• Pressure: 25-125 psi (172-862 kPa).
• Temperature: 40-100 degree F (4.4-37.8 degree C)
• Capacity: 625 gallons (2,366 liters)
• Weight: 5 lbs (2.3 kg)
• Flow Rate: 0.6 gpm (2.3 lpm)
• Dimensions (HxWxD): 15 3/4" x 10 3/4" x 3 1/4" (40 x 27 x 8 cm)

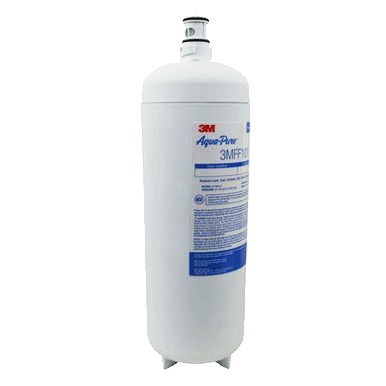

FF101 Replacement Cartridge for Full Flow Drinking Water System FF100 (016145233104)
• 0.2 nominal micron rating
• 2.5 GPM allows filter system to be used on existing kitchen and /or both faucets
• 3/8" NPT connections on filter head makes installation easy
• Shut off valve in head eliminates the need to turn off water supply
• Sanitary quick change design helps eliminate the need to handle filter media
• Easy filter change-outs, just a 1/4 turn to remove and insert
This system reduces CTO, sediment, and a number of select VOCs (Benzene, P-Dichlorobenzene & Toxaphene), as well as lead, and 99.95% of filterable parasitic protozoan cysts from your cold water supply delivered right to the sink.
Replacement Filter Heads

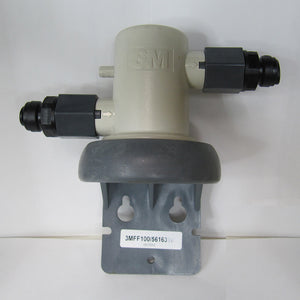

We also have a limited quantity of 3M filter heads with a built in shut-off valve and 3/8" push fittings suitable for John Guest connectors available (which also come with a mounting bracket attached, as shown):

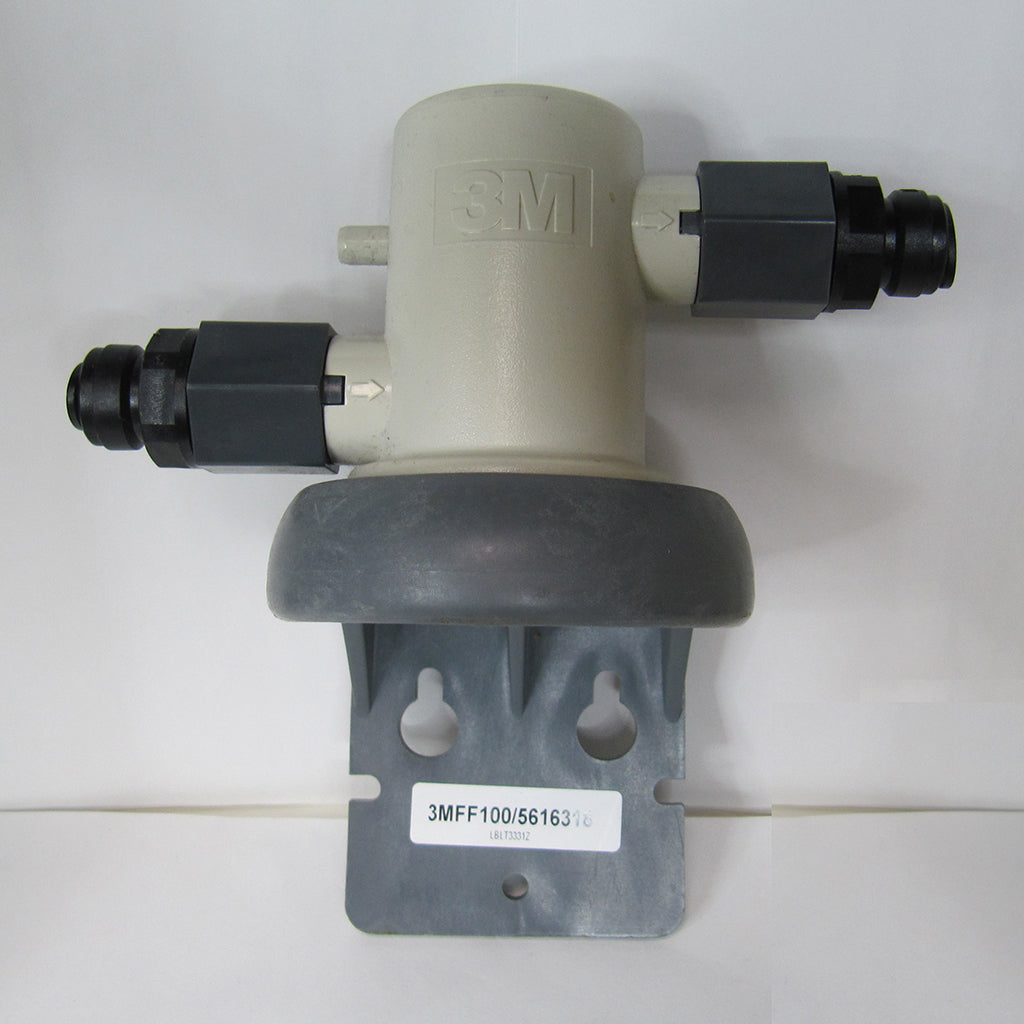

- one for the Model FF100 Full Flow 100 Drinking Water System, with that system's black fittings already on it;

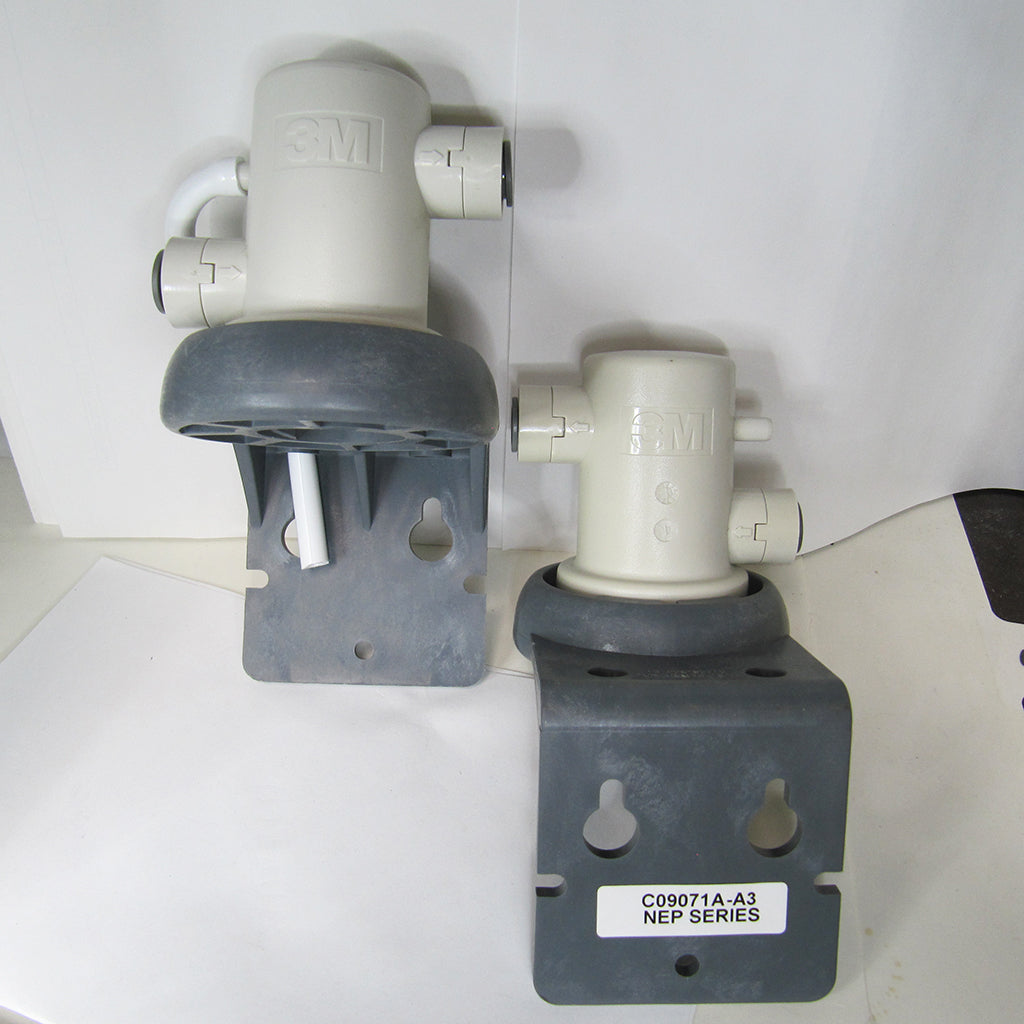

- three other NEP series Filter Heads that are compatible with the AP Easy CS-FF and Cyst-FF models, as well as models HF15-MS, HF27-S, P-124BN, P-165BN, CC351, HC351s, CWFAP9112, AP9112, and AP9000; and,
- one for the qua-Pure AP903 Whole House System, available on our Replacement Parts for 3M Aqua-AP903 Whole House Water System page.
Warnings:
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. System certified for cyst prediction may be used on disinfected water that may contain filterable cysts.
Install on COLD water lines only.
To reduce the risk associated with property damage due to water leakage, read and follow use instructions before installation and use of these systems.
Installation and Use MUST comply with all provincial or state and local plumbing codes.
Protect from freezing. Drain filter when temperatures from below 40 degrees F (4.4C).
Do not install these systems if water pressure exceeds 125 psi (862 kPa). If your water pressure exceeds 125 psi, you must install a pressure limiting value. Contact a plumbing professional if you are uncertain how to check your water pressure.
Do not install where water hammer conditions may occur. If water hammer conditions exist you much install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.
The disposable filter cartridge must be replaced every six months, or at the specified service cycle.
